Lighting Trends and Ecological Impacts of Artificial Light at Night in Aotearoa New Zealand

1. Introduction & Overview

Artificial Light at Night (ALAN) represents a pervasive but often overlooked environmental pollutant. This research by Cieraad and Farnworth (2023) quantifies the rapid changes in New Zealand's nocturnal light environment between 2012 and 2021 using satellite data and synthesizes the current understanding of its ecological consequences. The study positions ALAN not just as an aesthetic or astronomical issue, but as a significant driver of ecological disruption, affecting physiology, behavior, species interactions, and ecosystem functions across terrestrial and aquatic realms.

The transition from traditional lighting like High-Pressure Sodium (HPS) to broad-spectrum Light-Emitting Diodes (LEDs) introduces new ecological challenges, as many organisms are sensitive to specific light wavelengths. The paper underscores that while most of New Zealand remains dark, the areas that are lit are expanding and intensifying at an alarming rate, threatening the nation's unique "dark sky cloak."

2. Methodology & Data Analysis

The study employs a two-pronged methodological approach: quantitative geospatial analysis and a systematic qualitative review.

2.1 Satellite Data & Spatiotemporal Analysis

The core of the trend analysis relies on satellite-derived radiance data covering Aotearoa New Zealand from 2012 to 2021. The researchers quantified:

Lit Surface Area: The percentage of the country's land surface with detectable direct ALAN emissions.
Brightness Trends: Changes in radiance values for each pixel over the decade, calculating both areas of increase and decrease.
Spatial Patterns: Identification of regions experiencing the most significant changes.

A critical methodological note is the acknowledged limitation of satellite sensors: they underestimate total ALAN as they cannot fully capture skyglow (scattered light in the atmosphere) or the blue-rich spectrum of modern LEDs, to which the sensors are less sensitive.

2.2 Literature Review Framework

The ecological impact assessment is based on a review of 39 pieces of literature. The review was structured to categorize impacts by:

Taxonomic Group: e.g., avifauna, mammals, insects, herpetofauna.
Type of Impact: e.g., behavioral disruption, physiological changes, population-level effects.
Study Methodology: e.g., experimental, observational, or general commentary.

This framework allowed for the identification of not only what is known but, more importantly, significant gaps in the research.

3. Key Findings & Results

Lit Area Increase (2012-2021)

37.4%

From 3.0% to 4.2% of land surface

Area with Increased Brightness

4,694 km²

Median brightness increase: 87%

Area with Decreased Brightness

886 km²

Mainly urban centers (median decrease: 33%)

Literature Analysis

>31%

of reviewed records were general observations, not formal studies

3.1 ALAN Expansion Trends (2012-2021)

The data reveals a rapidly brightening nightscape. While 95.2% of New Zealand has no direct ALAN emissions, the lit area grew substantially. The 37.4% expansion is a conservative estimate. Notably, nearly 4,700 km² became significantly brighter, with a median radiance increase of 87%. Reductions in brightness, though smaller in area, occurred primarily in urban cores, likely due to lighting retrofits, but absolute light levels there remain high.

3.2 Ecological Impact Assessment

The literature review identified documented impacts, primarily behavioral, on birds, mammals, and insects. Examples include disrupted foraging and navigation in bats and birds, and altered attraction and dispersal in insects. However, the review highlights a severe taxonomic bias and methodological weakness.

3.3 Research Gaps Identified

Taxonomic Gaps: No studies were found on impacts for herpetofauna (reptiles and amphibians) or marine mammals in NZ contexts.
Ecological Depth: A stark absence of studies quantifying impacts on population sizes, species interactions (e.g., predator-prey dynamics), or broader ecosystem functions and services.
Methodological Rigor: Over one-third of the "literature" consisted of general observations, underscoring ALAN's status as an understudied pollutant.

4. Technical Details & Mathematical Framework

The analysis of brightness trends relies on comparing digital numbers (DN) or radiance values from satellite pixels over time. The percent change in brightness for a pixel i between year t1 (2012) and t2 (2021) is calculated as:

$\Delta Brightness_i = \frac{(Radiance_{i, t2} - Radiance_{i, t1})}{Radiance_{i, t1}} \times 100\%$

The median increase (87%) and decrease (33%) reported are derived from the distribution of $\Delta Brightness_i$ values across all pixels classified as "increased" or "decreased," respectively. This approach is robust to outliers, such as extremely bright new point sources.

A key technical challenge is sensor calibration and the translation of DN to meaningful ecological metrics like illuminance (lux) or spectral composition. Models like the one described in Falchi et al. (2016) attempt this, but uncertainties remain, especially for LED spectra.

5. Results Visualization & Chart Description

Conceptual Map Series (2012 vs. 2021): A pair of national maps would show ALAN emissions. The 2012 map displays isolated lit areas primarily around major urban centers (e.g., Auckland, Wellington, Christchurch) and some industrial sites. The 2021 map shows a clear expansion: existing lit patches have grown in size and intensity (darker red/orange hues), and new, smaller lit areas have emerged, creating a more fragmented pattern of light across the landscape, particularly in coastal regions and expanding peri-urban zones.

Bar Chart: Literature Breakdown: A bar chart categorizing the 39 literature pieces. The largest bar would be "Behavioral Studies (Birds/Mammals/Insects)." Significantly smaller bars would represent "Physiological Studies" and "Population Studies." Bars for "Herpetofauna" and "Marine Mammals" would be absent (height zero). A separate pie chart or note would highlight that 31% of the total are "General Observations."

Trend Line Graph: A line graph from 2012 to 2021 showing the steady climb of the "Percentage of Lit Land Surface" from 3.0% to 4.2%. A second, steeper line could represent the "Cumulative Area with Increased Brightness," illustrating the accelerating footprint of change.

6. Analytical Framework: Case Study Example

Case: Assessing the Impact of a New LED Streetlight Network on a Coastal Bird Colony.

1. Problem Definition: A council plans to install new white LED streetlights along a coast near a breeding colony of burrowing seabirds (e.g., petrels).

2. Framework Application:

Pre-Implementation Baseline: Use satellite data (like the study's method) to establish current ALAN levels. Conduct field surveys of bird activity (arrival/departure times, chick feeding rates) and predator presence.
Impact Modeling: Model the expected increase in skyglow and direct glare using lighting engineering software and atmospheric scattering models. Overlay this with species sensitivity data (e.g., attraction thresholds for specific wavelengths).
Mitigation Simulation: Test alternative scenarios within the framework: What if lights are dimmed after midnight (temporal mitigation)? What if amber LEDs are used instead of white (spectral mitigation)? What if shields are installed to reduce horizontal light spill (spatial mitigation)?
Monitoring Protocol: Define key performance indicators (KPIs) for post-installation monitoring: changes in bird grounding rates, shifts in predator activity near lights, and overall breeding success.

This structured, hypothesis-driven approach moves beyond observation to predictive and mitigative science.

7. Future Applications & Research Directions

High-Resolution & Hyperspectral Monitoring: Leveraging new satellite constellations (e.g., VIIRS follow-ons) and airborne hyperspectral sensors to better capture LED spectra and low-level light sources.
Integration with Ecological Niche Modeling: Incorporating ALAN layers as a dynamic variable in species distribution models (SDMs) to predict range shifts for light-sensitive nocturnal species.
Smart Lighting & Adaptive Control Systems: Developing IoT-based streetlight networks that can dynamically adjust intensity and spectrum based on real-time traffic, weather, and biological activity data (e.g., bird migration periods).
Ecosystem-Wide Impact Studies: Prioritizing research that moves from single-species effects to understanding ALAN's role in disrupting food webs, pollination networks, and nutrient cycles.
Policy & Standard Development: Using findings to inform national standards for outdoor lighting, similar to the "Dark Sky Places" certification but with enforceable ecological criteria.

8. References

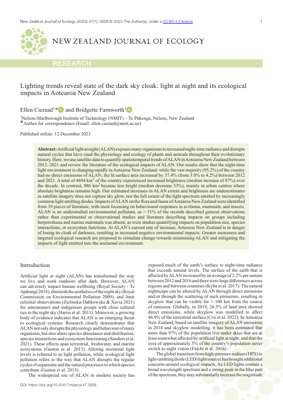

Cieraad, E., & Farnworth, B. (2023). Lighting trends reveal state of the dark sky cloak: light at night and its ecological impacts in Aotearoa New Zealand. New Zealand Journal of Ecology, 47(1), 3559.
Falchi, F., Cinzano, P., Duriscoe, D., Kyba, C. C. M., Elvidge, C. D., Baugh, K., ... & Furgoni, R. (2016). The new world atlas of artificial night sky brightness. Science Advances, 2(6), e1600377.
Gaston, K. J., Bennie, J., Davies, T. W., & Hopkins, J. (2013). The ecological impacts of nighttime light pollution: a mechanistic appraisal. Biological Reviews, 88(4), 912-927.
Kyba, C. C. M., Kuester, T., Sánchez de Miguel, A., Baugh, K., Jechow, A., Hölker, F., ... & Guanter, L. (2017). Artificially lit surface of Earth at night increasing in radiance and extent. Science Advances, 3(11), e1701528.
Sanders, D., Frago, E., Kehoe, R., Patterson, C., & Gaston, K. J. (2021). A meta-analysis of biological impacts of artificial light at night. Nature Ecology & Evolution, 5(1), 74-81.
International Dark-Sky Association. (2023). Lighting and Human Health. Retrieved from https://www.darksky.org/

9. Expert Analysis & Critical Review

Core Insight

Cieraad and Farnworth's paper is a crucial alarm bell, not just a status report. Its core insight is that Aotearoa New Zealand is passively conducting a massive, uncontrolled ecological experiment by allowing ALAN to expand at a rate of ~3.7% per year. The real story isn't the 4.2% of lit land; it's the 87% median brightness increase in affected areas. This indicates we're not just spreading light thinly—we're intensifying it dramatically where it already exists, creating ecological hotspots of disruption. The transition to LEDs, often touted for energy efficiency, is a double-edged sword ecologically, a point the authors rightly stress but that policymakers consistently ignore.

Logical Flow

The paper's logic is sound and damning: 1) Quantify the change (rapid increase), 2) Review the known impacts (significant but taxonomically narrow), 3) Expose the knowledge gaps (glaring and ecologically profound). This flow effectively argues that the risk is both known to be serious and potentially much worse than we know. The use of satellite data provides an objective, replicable baseline—a gold standard in environmental monitoring. However, the logical chain highlights a systemic failure: ecological research is lagging decades behind the lighting technology rollout.

Strengths & Flaws

Strengths: The paper's greatest strength is its fusion of big-data geospatial analysis with traditional literature synthesis. Highlighting the >31% of records as mere "observations" is a brutally honest assessment of the field's immaturity. By explicitly stating their satellite-based trends are underestimates, they pre-empt criticism and strengthen their call to action.

Flaws & Missed Opportunities: The analysis is retrospective. A forward-looking model projecting trends under different policy scenarios (business-as-usual vs. strict regulations) would have been powerful. While they mention spectral issues, they could have drawn a sharper contrast with seminal works like Gaston et al. (2013), which established the mechanistic framework for ecological light pollution. The case for why NZ's biodiversity is uniquely vulnerable (e.g., high proportion of nocturnal endemic species) could have been more forcefully made.

Actionable Insights

For policymakers and environmental managers, this paper provides a clear mandate:

Mandate Ecological Impact Assessments for Lighting Projects: Just as we assess water or noise pollution, major lighting installations need an EIA that uses frameworks like the one suggested in Section 6.
Redirect Research Funding: Prioritize grants that fill the identified gaps—especially studies on population-level consequences and ecosystem functions. Research must move beyond documenting disoriented moths.
Enforce Spectral and Temporal Controls: Regulations should mandate warm-color (<3000K) LEDs with full cutoff fixtures and require dimming or curfews during critical biological periods (e.g., bird fledging, insect mating). The technology for this exists; the will does not.
Treat Skyglow as a Regional Pollutant: Its 100km+ reach means local council approaches are futile. National standards, akin to air quality standards, are required.

In conclusion, this paper is a masterclass in turning data into a compelling narrative for conservation. It shows that New Zealand's "clean, green" brand is fundamentally incompatible with a brightly lit night. The choice is stark: control ALAN now or accept the irreversible erosion of its nocturnal ecosystems. The time for mere awareness is over; the era of targeted, evidence-based intervention must begin.
