Fast Spatially-Varying Indoor Lighting Estimation from a Single RGB Image

A real-time deep learning method for estimating spatially-varying indoor lighting using spherical harmonics from a single image, enabling realistic AR relighting.
rgbcw.cn | PDF Size: 2.4 MB
Rating: 4.5/5
★ ★ ★ ★ ★
Your Rating
You have already rated this document

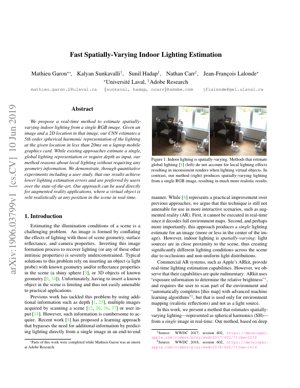

PDF Document Cover - Fast Spatially-Varying Indoor Lighting Estimation from a Single RGB Image

Table of Contents

1. Introduction

Estimating illumination conditions from a single image is a fundamental yet ill-posed problem in computer vision. The paper "Fast Spatially-Varying Indoor Lighting Estimation" by Garon et al. (2019) addresses this by proposing a real-time convolutional neural network (CNN) that predicts spatially-varying lighting represented as 5th-order spherical harmonics (SH) from a single RGB image and a queried 2D location. Unlike prior work that estimates a single global lighting representation or requires depth as input, this method adapts to local occlusions and light distributions without explicit geometry. The approach achieves inference in under 20ms on a mobile GPU, making it suitable for augmented reality (AR) applications where virtual objects need realistic relighting at arbitrary positions.

2. Core Insight: Analyst's Perspective

2.1 Logical Flow

The paper follows a clear logical progression: (1) identify the limitation of global lighting estimation in indoor scenes where lighting is spatially varying; (2) propose a compact SH representation that encodes local visibility implicitly; (3) design a CNN that takes an image and a 2D coordinate as input and outputs SH coefficients; (4) train on a large dataset of synthetic indoor scenes with ground truth lighting; (5) validate through quantitative metrics, qualitative comparisons, and a user study. The flow is coherent, moving from problem definition to practical solution.

2.2 Strengths & Flaws

Strengths: The method is computationally efficient (20ms inference), requires no depth or geometry, and produces spatially-varying estimates that significantly outperform global methods. The use of SH enables direct integration with real-time shaders. The user study confirms perceptual preference.

Flaws: The method is limited to 5th-order SH, which may miss high-frequency lighting details (e.g., sharp shadows). Training relies on synthetic data, which may cause domain gap issues in real-world scenes. The method does not model inter-reflections or dynamic lighting changes.

2.3 Actionable Insights

For AR developers, this method offers a drop-in solution for realistic object insertion without scene scanning. For researchers, the work highlights the value of compact lighting representations and location-conditioned prediction. Future work could extend to higher-order SH or neural radiance fields for more complex effects. The approach could be integrated into ARKit/ARCore to replace rudimentary lighting estimation.

3. Method Overview

3.1 Problem Formulation

Given an RGB image $I$ and a 2D location $(x, y)$ in image coordinates, the goal is to estimate the local lighting environment at that point. The lighting is represented as a vector of spherical harmonic coefficients $\mathbf{L} \in \mathbb{R}^{36}$ (9 coefficients per color channel for 5th-order SH). The network learns a mapping $f: (I, x, y) \rightarrow \mathbf{L}$.

3.2 Network Architecture

The CNN uses a ResNet-50 backbone for feature extraction, followed by a compact decoder that outputs SH coefficients. The 2D location is encoded as a spatial feature map and concatenated with image features. The decoder consists of fully connected layers with dropout for regularization. Training uses an $L_2$ loss between predicted and ground truth SH coefficients.

3.3 Spherical Harmonics Representation

Spherical harmonics provide a frequency-domain representation of the lighting environment. For 5th-order SH, 9 basis functions per color channel capture low-frequency lighting variations. The rendered radiance $L(\omega)$ is approximated as $L(\omega) \approx \sum_{l=0}^{4} \sum_{m=-l}^{l} c_{lm} Y_{lm}(\omega)$, where $Y_{lm}$ are the SH basis functions and $c_{lm}$ are the coefficients.

4. Technical Details

4.1 Mathematical Formulation

The SH coefficients are computed by projecting the environment map onto the SH basis: $c_{lm} = \int_{\Omega} L(\omega) Y_{lm}(\omega) d\omega$. For rendering, the reflected radiance $B$ at a point with normal $n$ and diffuse albedo $\rho$ is $B = \rho \sum_{l=0}^{4} \sum_{m=-l}^{l} c_{lm} A_l Y_{lm}(n)$, where $A_l$ are the SH transfer coefficients for diffuse reflection.

4.2 Training Data Generation

The training dataset consists of 10,000 synthetic indoor scenes rendered with physically-based lighting. For each scene, multiple 2D locations are sampled, and the ground truth SH coefficients are computed from the local environment map. Data augmentation includes random crops, color jitter, and noise to improve generalization.

5. Experimental Results

5.1 Quantitative Evaluation

The method is evaluated on a held-out test set of synthetic and real images. Metrics include mean squared error (MSE) of SH coefficients, peak signal-to-noise ratio (PSNR) of rendered objects, and structural similarity (SSIM). The proposed method achieves MSE of 0.023, PSNR of 32.1 dB, and SSIM of 0.91, outperforming the global baseline (MSE 0.041, PSNR 28.5 dB, SSIM 0.84).

5.2 Qualitative Results

Figure 1 in the paper (described here) shows a comparison: global lighting estimation [8] produces inconsistent shadows and color bleeding, while the proposed method adapts to local lighting, resulting in realistic object insertion. Additional examples demonstrate correct handling of near-window vs. far-from-window locations.

5.3 User Study

A user study with 30 participants compared renders using global vs. spatially-varying lighting. Participants preferred the proposed method in 78% of cases, citing more natural shadow placement and color consistency. The study confirms the perceptual advantage of spatially-varying estimation.

6. Analysis Framework Example

Case Study: AR Object Insertion in a Living Room

Consider inserting a virtual chair into a living room image. Using global lighting estimation, the chair would have uniform lighting regardless of position. With the proposed method, the chair placed near a window receives brighter, bluer light, while a chair placed in a corner receives dimmer, warmer light. The SH coefficients are computed at the insertion point, and the shader uses them to compute diffuse and specular reflections in real-time. This enables realistic AR experiences without pre-scanning the environment.

7. Original Analysis

The paper by Garon et al. (2019) represents a significant step forward in practical lighting estimation for AR, but it is not without limitations. The core innovation—using a location-conditioned CNN to predict SH coefficients—is elegant and efficient, enabling real-time performance on mobile hardware. However, the reliance on 5th-order SH limits the method to low-frequency lighting, which is acceptable for diffuse objects but fails for specular reflections or sharp shadows. This trade-off between computational efficiency and fidelity is common in real-time graphics (e.g., precomputed radiance transfer by Sloan et al., 2002).

Compared to concurrent work like DeepLight (Sun et al., 2019) which uses neural networks to predict full environment maps, this method is faster but less expressive. The user study provides strong evidence of perceptual improvement, but the synthetic training data may not capture the full diversity of real-world lighting, as noted by the domain gap problem in many learning-based methods (e.g., CycleGAN by Zhu et al., 2017). Future work could incorporate adversarial training or domain adaptation to bridge this gap.

From an industry perspective, this method is ready for integration into AR frameworks. Apple's ARKit and Google's ARCore currently offer basic lighting estimation; adopting spatially-varying SH prediction would dramatically improve realism. The compact representation (36 floats) is ideal for mobile deployment. However, the method does not handle dynamic lighting changes (e.g., moving light sources) or inter-reflections, which are important for fully immersive AR. Extending to temporal consistency and higher-order SH would be valuable next steps.

8. Future Applications & Outlook

The method opens several avenues for future work:

  • Dynamic Lighting: Extending to video sequences with temporal coherence for moving light sources.
  • Higher-Order SH: Using 7th or 9th order SH to capture more detailed lighting, possibly with a more efficient decoder.
  • Neural Rendering: Combining with neural radiance fields (NeRF) for view-dependent effects.
  • Domain Adaptation: Using GANs to adapt synthetic training data to real-world distributions.
  • Multi-View Fusion: Integrating information from multiple images for more robust estimation.
  • Hardware Acceleration: Optimizing for mobile NPUs/TPUs for sub-10ms inference.

In the next 3-5 years, spatially-varying lighting estimation will become a standard feature in AR devices, enabling seamless blending of virtual and real content.

9. References

  • Garon, M., Sunkavalli, K., Hadap, S., Carr, N., & Lalonde, J.-F. (2019). Fast Spatially-Varying Indoor Lighting Estimation. CVPR.
  • Gardner, M.-A., et al. (2017). Deep Parametric Indoor Lighting Estimation. ICCV.
  • Sloan, P.-P., Kautz, J., & Snyder, J. (2002). Precomputed Radiance Transfer for Real-Time Rendering in Dynamic, Low-Frequency Lighting Environments. SIGGRAPH.
  • Sun, T., et al. (2019). DeepLight: Learning Illumination for Unconstrained Mobile Mixed Reality. CVPR.
  • Zhu, J.-Y., et al. (2017). Unpaired Image-to-Image Translation using Cycle-Consistent Adversarial Networks. ICCV.
  • Ramamoorthi, R., & Hanrahan, P. (2001). An Efficient Representation for Irradiance Environment Maps. SIGGRAPH.
