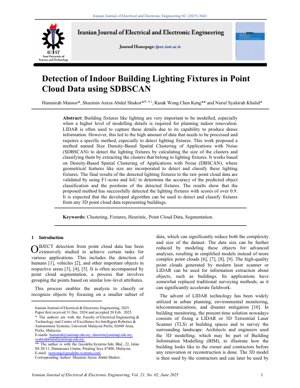

Detection of Indoor Building Lighting Fixtures in Point Cloud Data using SDBSCAN

1. Introduction

Object detection from point cloud data has become increasingly important for various applications including building information modeling (BIM), urban planning, and facility management. The advent of LiDAR technology has enabled high-quality 3D data acquisition, but processing these dense point clouds remains challenging, particularly for detecting small indoor fixtures like lighting.

This research addresses the specific challenge of detecting indoor lighting fixtures from point cloud data, which is crucial for accurate BIM development and renovation planning. Traditional methods struggle with the complexity and density of modern LiDAR data, necessitating specialized algorithms.

1.1. Research Gaps

Previous research in Architecture/Engineering/Construction (AEC) applications has primarily focused on detecting large, obvious structures like windows, doors, and furniture. There exists a significant gap in automated methods for detecting smaller fixtures like lighting, which are equally important for comprehensive building modeling.

The high density of point cloud data from modern LiDAR systems creates computational challenges that require efficient algorithms specifically designed for fixture detection.

2. Methodology

The proposed method, Size Density-Based Spatial Clustering of Applications with Noise (SDBSCAN), extends the traditional DBSCAN algorithm by incorporating geometrical features like size to detect and classify lighting fixtures.

2.1. SDBSCAN Algorithm

SDBSCAN operates by calculating cluster sizes and classifying them based on predefined thresholds. The algorithm incorporates both density and spatial characteristics to identify lighting fixtures within point cloud data.

The core innovation lies in the integration of size-based heuristics with density clustering, allowing for more accurate identification of specific fixture types.

2.2. Technical Implementation

The mathematical foundation of SDBSCAN builds upon DBSCAN's core concepts but introduces size constraints. The algorithm can be represented as:

$\text{SDBSCAN}(P, \epsilon, \text{MinPts}, S_{\text{min}}, S_{\text{max}})$ where:

• $P$: Point cloud dataset
• $\epsilon$: Neighborhood radius
• $\text{MinPts}$: Minimum points to form a cluster
• $S_{\text{min}}$: Minimum cluster size threshold
• $S_{\text{max}}$: Maximum cluster size threshold

The algorithm first performs density-based clustering, then filters clusters based on size constraints to identify lighting fixtures.

3. Experimental Results

The proposed method was validated using real-world point cloud data from building interiors. The results demonstrate significant improvements in lighting fixture detection accuracy.

3.1. Performance Metrics

Validation was performed using two key metrics:

• F1-score: Harmonic mean of precision and recall
• IoU (Intersection over Union): Measures overlap between detected and ground truth fixtures

These metrics provide comprehensive evaluation of both classification accuracy and positional precision.

3.2. Results Analysis

The experimental results show that SDBSCAN achieved F1-scores exceeding 0.9, indicating high accuracy in lighting fixture detection. The IoU scores similarly demonstrated excellent positional accuracy.

The algorithm successfully distinguished lighting fixtures from other indoor objects and structural elements, demonstrating robustness in complex indoor environments.

4. Analysis Framework Example

Core Insight: This paper's real breakthrough isn't just another clustering tweak—it's recognizing that in the messy reality of indoor point clouds, size matters as much as density. While everyone was busy optimizing DBSCAN's epsilon and MinPts for general objects, the authors identified that lighting fixtures occupy a specific spatial footprint that's both consistent and distinguishable from walls, furniture, and pipes. This is a classic case of domain-specific insight trumping generic algorithmic improvements.

Logical Flow: The research follows a clean, pragmatic pipeline: acquire dense LiDAR data → apply modified clustering → filter by size heuristics → validate against ground truth. What's particularly smart is their validation approach—using both F1-score for classification accuracy and IoU for positional precision. This dual-metric validation acknowledges that in BIM applications, knowing something is a light isn't enough; you need to know exactly where it is for clash detection and MEP coordination.

Strengths & Flaws: The strength here is undeniable practicality. Scores over 0.9 on real building data suggest this actually works in the field, not just in academic simulations. The integration with existing DBSCAN implementations means relatively easy adoption. However, the paper's major flaw is the lack of discussion around parameter tuning. Those size thresholds ($S_{\text{min}}, S_{\text{max}}$) aren't universal—they'll vary dramatically between recessed LED panels and hanging industrial fixtures. The method risks being brittle across diverse building types without adaptive thresholding or machine learning-based size estimation.

Actionable Insights: For practitioners, this research provides a immediately usable template: start with DBSCAN, then add size filtering specific to your fixture catalog. For researchers, the next obvious step is replacing hard-coded size thresholds with learned distributions or integrating with semantic segmentation backbones like PointNet++. The bigger opportunity? This size-plus-density approach could revolutionize how we detect all MEP components—not just lights. Imagine applying similar logic to detect sprinkler heads, electrical outlets, or HVAC vents, each with their characteristic spatial signatures.

5. Future Applications & Directions

The SDBSCAN method has significant potential for broader applications in building management and smart city development:

• Automated BIM Generation: Integration with BIM software for automatic fixture modeling
• Facility Management: Automated inventory tracking and maintenance scheduling
• Energy Optimization: Lighting fixture detection for energy consumption analysis
• Augmented Reality: Accurate fixture localization for AR maintenance applications

Future research directions include:

• Integration with deep learning approaches for improved accuracy
• Extension to other MEP components detection
• Real-time processing capabilities for mobile scanning applications
• Multi-sensor fusion with thermal and RGB data
