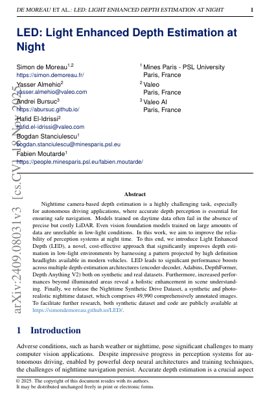

LED: Light Enhanced Depth Estimation at Night - Technical Analysis & Industry Perspective

1. Introduction & Problem Statement

Nighttime camera-based depth estimation remains a critical unsolved challenge for autonomous driving. Models trained on daytime data fail under low-light conditions, and while LiDAR provides accurate depth, its high cost and susceptibility to adverse weather (e.g., fog, rain causing beam reflection and noise) limit widespread adoption. Vision foundation models, despite training on vast datasets, are unreliable on nighttime images which represent a long-tail distribution. The lack of large-scale, annotated nighttime datasets further hinders supervised learning approaches. This paper introduces Light Enhanced Depth (LED), a novel method that leverages the pattern projected by modern vehicles' High-Definition (HD) headlights to significantly enhance depth estimation accuracy at night, offering a cost-effective alternative to LiDAR.

2. The LED Method: Core Concept

LED draws inspiration from active stereovision. Instead of relying solely on passive ambient light, it actively illuminates the scene with a known, structured pattern from HD headlights. This projected pattern acts as a visual cue, providing additional texture and features that are otherwise absent in dark, low-contrast nighttime scenes.

2.1. Pattern Projection Principle

The core idea is to treat the vehicle's headlights as a controlled light source. By projecting a specific pattern (e.g., a grid or pseudo-random dot pattern), the scene's surface geometry modulates this pattern. The distortion of the known pattern in the captured RGB image provides direct cues for depth estimation, similar to how structured light systems work but at a longer range and integrated into standard automotive hardware.

2.2. System Architecture & Integration

LED is designed as a modular enhancement. It can be integrated into various existing depth estimation architectures (encoder-decoder, Adabins, DepthFormer, Depth Anything V2). The method takes the pattern-illuminated RGB image as input. The network learns to correlate the distortions of the projected pattern with depth, effectively using the active illumination as a supervisory signal during training. Remarkably, the performance improvement extends beyond the directly illuminated areas, suggesting a holistic enhancement in the model's scene understanding.

3. Nighttime Synthetic Drive Dataset

To address the data scarcity problem, the authors release the Nighttime Synthetic Drive Dataset. This is a large-scale, photorealistic synthetic dataset containing 49,990 images with comprehensive annotations:

• Dense Depth Maps: Accurate ground truth depth for supervised training.
• Multi-Illumination Conditions: Each scene is rendered under different lighting: standard high beam and pattern-illuminated by HD headlights.
• Additional Labels: Likely includes semantic segmentation, instance segmentation, and possibly optical flow to facilitate multi-task learning.

The use of synthetic data, as championed by simulators like CARLA and NVIDIA DRIVE Sim, is crucial for developing and testing perception systems in rare or dangerous conditions. The dataset is publicly available to foster further research.

4. Experimental Results & Performance

The LED method demonstrates significant performance improvements across the board.

4.1. Quantitative Metrics

Experiments on both synthetic and real datasets show substantial boosts in standard depth estimation metrics such as:

• Absolute Relative Error (Abs Rel): Significant reduction, indicating higher overall accuracy.
• Square Relative Error (Sq Rel): Improved, especially for larger depth values.
• Root Mean Square Error (RMSE): Marked decrease.
• Threshold Accuracy ($\delta$): Increase in the percentage of pixels where the predicted depth is within a threshold (e.g., 1.25, 1.25², 1.25³) of the ground truth.

The improvement is consistent across all tested architectures, proving LED's versatility as a plug-and-play enhancement.

4.2. Qualitative Analysis & Visualizations

Visual results (as suggested by Figure 1 in the PDF) clearly show:

• Sharper Object Boundaries: Depth discontinuities around cars, pedestrians, and poles are much better defined with LED.
• Reduced Artifacts: Smearing and noise in homogeneous dark regions (e.g., road surface, dark walls) are minimized.
• Improved Long-Range Estimation: Depth predictions for objects farther from the vehicle are more reliable and consistent.
• Holistic Improvement: Enhanced depth estimation in areas adjacent to, but not directly illuminated by, the pattern, demonstrating generalized scene understanding.

5. Technical Details & Mathematical Formulation

The enhancement can be framed as learning a correction function. Let $I_{rgb}$ be the standard RGB image and $I_{pattern}$ be the image with the projected headlight pattern. A standard depth estimator $f_\theta$ predicts depth $D_{base} = f_\theta(I_{rgb})$. The LED-augmented estimator $g_\phi$ takes the pattern-illuminated image to predict superior depth: $D_{LED} = g_\phi(I_{pattern})$.

The core learning objective, especially in a supervised setting with ground truth depth $D_{gt}$, is to minimize a loss such as the BerHu loss or a scale-invariant logarithmic loss:

$\mathcal{L}_{depth} = \frac{1}{N} \sum_i \left( \log D_{LED}^{(i)} - \log D_{gt}^{(i)} + \alpha \cdot (\log D_{LED}^{(i)} - \log D_{gt}^{(i)})^2 \right)$

where $\alpha$ regulates the penalty. The network $g_\phi$ implicitly learns to decode the geometric distortions in $I_{pattern}$. The pattern effectively provides a dense set of correspondences, simplifying the ill-posed monocular depth estimation problem into a more constrained one.

6. Analysis Framework & Case Example

Framework: Multi-Sensor Fusion & Active Perception Evaluation

Scenario: An autonomous vehicle navigating an unlit suburban road at night. A pedestrian in dark clothing steps onto the road just outside the main beam.

Baseline (Camera-only): The monocular depth network, trained on daytime data, struggles. The pedestrian region lacks texture, leading to a grossly inaccurate, overly distant depth estimate or complete failure to detect depth discontinuity from the road. This could cause a critical planning error.

LED-Enhanced System: The HD headlights project the pattern. Even if the pedestrian is not in the brightest spot, scattered light and pattern distortion around the edges of the figure provide crucial cues.

1. Cue Extraction: The LED network detects subtle pattern distortions on the pedestrian's form and the road surface near their feet.
2. Depth Inference: These distortions are mapped to a much more accurate depth estimate, correctly placing the pedestrian at a dangerous, close range.
3. Output: A reliable depth map is passed to the perception stack, triggering an appropriate emergency braking maneuver.

This case highlights LED's value in addressing edge cases where passive vision fails, effectively turning a cost-effective camera into a more robust active sensor system.

7. Application Outlook & Future Directions

Immediate Applications:

• L2+/L3 Autonomous Driving: Enhanced safety and operational design domain (ODD) expansion for nighttime highway pilot and urban navigation systems.
• Advanced Driver-Assistance Systems (ADAS): Improved performance of automatic emergency braking (AEB) and pedestrian detection at night.
• Robotics & Drones: Navigation for robots operating in dark industrial or outdoor environments.

Future Research Directions:

• Dynamic Pattern Optimization: Learning or adapting the projected pattern in real-time based on scene content (e.g., range, weather) for maximal information gain.
• Multi-Task Learning: Jointly estimating depth, semantic segmentation, and motion from pattern-illuminated sequences.
• Adverse Weather Integration: Combining LED with techniques for handling fog, rain, and snow that also scatter and distort the projected light.
• V2X Communication: Coordinating patterns between multiple vehicles to avoid interference and enable cooperative perception.
• Self-Supervised LED: Developing training paradigms that do not require dense depth labels, perhaps using the consistency of the pattern across frames in a stereo or multi-view setup.

8. References

1. de Moreau, S., Almehio, Y., Bursuc, A., El-Idrissi, H., Stanciulescu, B., & Moutarde, F. (2025). LED: Light Enhanced Depth Estimation at Night. arXiv preprint arXiv:2409.08031v3.
2. Godard, C., Mac Aodha, O., Firman, M., & Brostow, G. J. (2019). Digging into self-supervised monocular depth estimation. ICCV.
3. Bhat, S. F., Alhashim, I., & Wonka, P. (2021). Adabins: Depth estimation using adaptive bins. CVPR.
4. Li, Z., et al. (2022). DepthFormer: Exploiting long-range correlation and local information for accurate monocular depth estimation. arXiv.
5. Yang, L., et al. (2024). Depth Anything V2. arXiv.
6. Gupta, S., et al. (2022). Lidar: The automotive perspective. Proceedings of the IEEE.
7. Cordts, M., et al. (2016). The Cityscapes Dataset for Semantic Urban Scene Understanding. CVPR.
8. Dosovitskiy, A., et al. (2021). An image is worth 16x16 words: Transformers for image recognition at scale. ICLR.
9. Zhu, J.-Y., Park, T., Isola, P., & Efros, A. A. (2017). Unpaired image-to-image translation using cycle-consistent adversarial networks. ICCV. (CycleGAN)
10. Dosovitskiy, A., Ros, G., Codevilla, F., López, A., & Koltun, V. (2017). CARLA: An open urban driving simulator. CoRL.
