Influence of LED and Fluorescent Light Color on Regeneration and Morphogenesis in Rebutia heliosa In Vitro Cultures

1. Introduction & Overview

This research investigates a critical, yet often oversimplified, variable in plant tissue culture: the light spectrum. Moving beyond mere "light vs. dark," the study by Vidican et al. (2024) systematically deconstructs how specific wavelengths from different light sources (LEDs vs. fluorescent tubes) differentially regulate complex developmental pathways in Rebutia heliosa, a commercially valuable cactus. The core premise is that light is not just an energy source but a precise signaling cue that can be engineered to steer morphogenesis (overall plant form) and specific regenerative processes like root (rhizogenesis) and shoot (caulogenesis) formation independently.

2. Materials and Methods

2.1 Plant Material and Explant Preparation

Explants were sourced from young R. heliosa plants, utilizing either buds or transverse sections cut from young stems. This choice of explant type is strategic, targeting tissues with high regenerative potential.

2.2 Culture Medium Composition

The study employed a defined, phytoregulator-free medium based on Murashige-Skoog (1962) macronutrients and Heller (1953) micronutrients. Key components included:

• Vitamins: Pyridoxine HCl, Thiamine HCl, Nicotinic acid (1 mg/L each)
• m-Inositol: 100 mg/L
• Sucrose: 20 g/L
• Agar-Agar: 7 g/L

The absence of growth regulators like auxins or cytokinins is a significant design choice, forcing the light treatment to be the primary morphogenetic driver.

2.3 Light Treatment Variables

The independent variable was the light source and spectrum, all maintained at 1000 lux intensity:

• LED Sources (Monochrome): Blue (λ = 470 nm), Green (λ = 540 nm), Yellow (λ = 580 nm), Red (λ = 670 nm), White (λ = 510 nm).
• Fluorescent Tubes: Provided white and yellow light spectra for comparison.

This setup allows for a direct comparison between narrow-bandwidth LED light and the broader, mixed spectrum of traditional fluorescent lighting.

2.4 Experimental Design and Monitoring

The experiment followed a comparative design where explants were subjected to the different light treatments. Cultures were monitored and their morphological responses analyzed over a 90-day period to assess long-term developmental effects.

3. Results and Key Findings

3.1 Morphogenesis under Different Light Sources

The study concluded that fluorescent tube light was more suitable for the overall morphogenesis of R. heliosa vitroplants. This suggests that the broader spectrum emitted by fluorescent lights may better simulate natural conditions necessary for balanced, whole-plant development.

3.2 Regenerative Process Specificity

A key, granular finding was the differential effect on specific regenerative processes:

• Favored by LED Light (Green/Red): Rhizogenesis (root formation) and Caulogenesis (shoot formation).
• Favored by Fluorescent Light (White/Yellow): Caulogenesis and Callusogenesis (undifferentiated cell mass formation).

This indicates that light quality can be used to selectively promote desired outcomes—roots and shoots vs. callus.

4. Technical Analysis and Framework

4.1 Core Insight & Logical Flow

Core Insight: The paper successfully shifts the paradigm from "light intensity" to "light quality as a spectral toolkit." The most compelling finding isn't that one light is "better," but that specific wavelengths act as selective switches for discrete developmental programs. The logical flow is robust: a controlled, hormone-free baseline (the medium) isolates light as the sole experimental variable, allowing clear attribution of the observed morphological differences—roots here, shoots there—to the specific photon signatures provided by LEDs and fluorescents.

4.2 Strengths & Flaws

Strengths:

• Elegant Variable Isolation: Removing growth regulators was a masterstroke. It cuts through the noise and proves light's direct, potent signaling role.
• Commercial Relevance: Targeting R. heliosa connects fundamental science to the horticultural market's need for efficient, scalable propagation protocols.
• Actionable Granularity: Identifying which light color promotes which process (e.g., red LED for roots) provides immediate, practical levers for growers.

Glaring Flaws:

• Photobiological Amateur Hour: Using lux—a unit for human visual perception—to measure plant light treatments is a fundamental error. Plants respond to photosynthetic photon flux density (PPFD, μmol/m²/s). A 1000 lux red LED and a 1000 lux blue LED deliver wildly different amounts of photosynthetically active radiation (PAR). This flaw potentially invalidates direct comparisons between color treatments.
• Mechanistic Black Box: The study stops at phenomenology. It shows the "what" but offers zero insight into the "why." How do green photons upregulate rhizogenesis? Through which photoreceptors (phytochrome, cryptochrome)? Without this, the findings are a recipe, not a theory.
• Data Lightweight: The description lacks quantitative rigor. Where are the counts of roots per explant, shoot length measurements, or callus fresh weight? The conclusions feel qualitative and impressionistic.

4.3 Actionable Insights

For commercial micropropagation labs:

1. Adopt a Two-Phase Protocol: Use red/Green LED arrays during the initial regeneration phase to maximize root and shoot initiation. Then, switch to broad-spectrum fluorescent light for the subsequent growth and hardening phase to ensure robust morphogenesis.
2. Dump Lux Meters: Immediately invest in a quantum PAR meter. Design all future experiments based on PPFD, not lux. This is non-negotiable for credible photobiology.
3. Pursue Spectral Mixing: Don't just test monochromatic lights. The next frontier is testing dynamic, mixed spectra (e.g., Red:Blue:Far-red ratios) to fine-tune development, a approach validated in high-value crops like cannabis and leafy greens.

5. Original Analysis: Light as a Precision Tool in Plant Biotechnology

This study, while methodologically flawed in its light measurement, taps into a transformative concept in controlled environment agriculture (CEA): using light as a precise, non-chemical morphogenetic agent. The finding that specific LED colors can differentially regulate organogenesis aligns with the broader principle of "photomorphogenesis," where plants interpret light signals via photoreceptors like phytochromes (red/far-red) and cryptochromes (blue/UV-A) to modulate gene expression and development (Smith, 2000). The work of Folta & Childers (2008) on using light to manipulate strawberry runnering demonstrates similar spectral precision in a commercial context.

The authors' approach of forgoing exogenous hormones is particularly significant. It suggests that for some species, the light environment can be engineered to trigger endogenous hormonal pathways (e.g., auxin redistribution for root initiation) naturally. This resonates with the goals of sustainable agriculture, reducing reliance on synthetic plant growth regulators. However, the study's major shortfall is its lack of mechanistic depth. Contrast this with seminal works like the CycleGAN paper (Zhu et al., 2017), which not only presented a novel image-to-image translation framework but also provided a rigorous mathematical foundation and extensive ablation studies. Similarly, research from institutions like the NASA Kennedy Space Center on LED lighting for space crop production rigorously quantifies photon flux and explores underlying photobiology.

For this research to transition from an interesting observation to a foundational protocol, it must embrace the standards of modern photobiology. Future iterations should measure PPFD, include controls for photoperiod, and incorporate molecular analyses (e.g., qPCR for marker genes like PIN auxin transporters or WUS for shoot meristem identity) to build a causal model linking photon absorption to phenotypic outcome. Only then can the "spectral toolkit" be reliably deployed across different plant species and production systems.

6. Technical Details and Mathematical Modeling

While the paper does not present explicit mathematical models, the underlying photobiological principles can be formalized. The effectiveness of a light treatment for a specific process (e.g., rhizogenesis) can be conceptualized as a function of the photon flux absorbed by relevant photoreceptors.

Photon Flux & Photoreceptor Activation: The photon flux density of a specific wavelength $\lambda$, $PFD(\lambda)$, is crucial. The activation state of a photoreceptor like Phytochrome B ($PhyB$) is determined by the ratio of red ($R$, ~660 nm) to far-red ($FR$, ~730 nm) light: $\phi = \frac{[P_{fr}]}{[P_{total}]} \approx \frac{R}{R + k \cdot FR}$ where $\phi$ is the photoequilibrium state, $[P_{fr}]$ is the active form, $[P_{total}]$ is the total phytochrome, and $k$ is a constant. In this study, the red LED (670 nm) would maximize $\phi$ for phytochrome, likely influencing processes like seed germination and shade avoidance, which may be co-opted in vitro for shoot elongation.

Action Spectrum Modeling: An idealized model for the morphogenetic response $M$ to a light spectrum $S(\lambda)$ can be represented as an integral over the action spectrum $A(\lambda)$ for that response: $M = \int_{\lambda_{min}}^{\lambda_{max}} S(\lambda) \cdot A(\lambda) \, d\lambda$ Where $S(\lambda)$ is the spectral power distribution of the light source (e.g., narrow peak for monochromatic LED, broader for fluorescent), and $A(\lambda)$ is the biological effectiveness of each wavelength for triggering, say, caulogenesis. The study's results imply that $A(\lambda)$ for caulogenesis has significant peaks in both the red (for LEDs) and yellow/white (for fluorescent) regions.

7. Experimental Results and Chart Description

The paper describes key outcomes qualitatively. A hypothetical data visualization based on these findings would include:

Chart 1: Comparative Morphogenetic Score under Different Light Treatments A multi-bar chart comparing treatments (Blue LED, Green LED, Red LED, White LED, Yellow Fluorescent, White Fluorescent) across three normalized response indices (0-10 scale):

• Rhizogenesis Index: Green and Red LED bars would be tallest.
• Caulogenesis Index: High bars for Red LED, White Fluorescent, and Yellow Fluorescent.
• Callusogenesis Index: Highest bars for White and Yellow Fluorescent light.
• Overall Morphogenesis Score: The fluorescent light treatments would show the highest composite score.

This chart would visually encapsulate the core finding: LEDs excel at directing specific regenerative tasks, while fluorescent light supports better overall development.

Chart 2: Temporal Development Profile A line graph showing the percentage of explants showing root initiation over the 90-day period. The line for Red/Green LED treatments would show a steeper, earlier ascent compared to other light sources, demonstrating their efficacy in accelerating rhizogenesis.

8. Analysis Framework: A Non-Code Case Study

Case: Optimizing a Commercial Cactus Micropropagation Pipeline

Problem: A nursery's current protocol for Rebutia heliosa uses standard white fluorescent lights, resulting in slow root formation and variable plantlet quality.

Analysis Framework Application:

1. Deconstruct the Process: Break down the micropropagation cycle into discrete phases: (A) Establishment & Callus Induction, (B) Regeneration (Shoot/Root Initiation), (C) Elongation & Growth.
2. Map Light to Phase Objective:
   • Phase A (0-30 days): Objective = Promote healthy explant establishment and callus if needed. Action: Use White/Yellow Fluorescent light (per study's callusogenesis finding).
   • Phase B (31-60 days): Objective = Maximize simultaneous shoot and root initiation. Action: Switch to a mixed LED panel with a Red (670nm) : Green (540nm) : Blue (470nm) ratio of 5:3:2 at a PPFD of 50 μmol/m²/s. This combines the root-promoting (Green/Red) and shoot-promoting (Red) effects identified.
   • Phase C (61-90 days): Objective = Support robust morphogenesis and prepare for acclimatization. Action: Switch back to a broad-spectrum white LED or fluorescent source with higher PPFD (100-150 μmol/m²/s) to drive photosynthesis and compact growth.
3. Measure & Iterate: Key Performance Indicators (KPIs) for each phase: Callus fresh weight (Phase A), number of roots/shoots per explant (Phase B), shoot length, chlorophyll content, and survival rate post-acclimatization (Phase C). Compare results against the old single-spectrum protocol.

This framework applies the study's findings in a dynamic, phase-specific manner, moving from observation to an optimized operational protocol.

9. Future Applications and Research Directions

1. Dynamic Spectral Programming: The future lies in "light recipes" that change spectrum, intensity, and photoperiod automatically throughout the growth cycle, akin to a climate computer for light. This could be used to synchronize and accelerate developmental stages.

2. Mechanistic & Molecular Investigations: Subsequent research must employ transcriptomics and hormone profiling to identify the gene networks and endogenous hormone shifts (auxin, cytokinin gradients) induced by green and red LED light, uncovering the signaling pathways.

3. Interspecies Protocol Development: Testing this spectral steering approach on other high-value, slow-to-propagate succulents, orchids, or endangered medicinal plants to build a cross-species database of effective light recipes.

4. Integration with Automation: Coupling spectral optimization with automated bioreactors for mass plant production, where light is a key controlled parameter to maximize yield and uniformity.

5. Urban Agriculture & Vertical Farming: Applying these principles to optimize the growth of not just propagules but also the finished edible biomass in vertical farms, tailoring spectra to enhance flavor, nutrient density, and morphology of leafy greens and herbs.

10. References

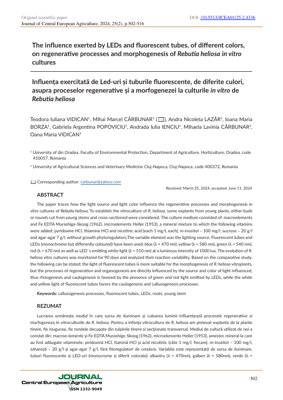

1. Vidican, T.I., Cărbuunar, M.M., Lazăr, A.N., Borza, I.M., Popoviciu, G.A., Ienciu, A.I., Cărbuunar, M.L., & Vidican, O.M. (2024). The influence exerted by LEDs and fluorescent tubes, of different colors, on regenerative processes and morphogenesis of Rebutia heliosa in vitro cultures. Journal of Central European Agriculture, 25(2), 502-516.
2. Murashige, T., & Skoog, F. (1962). A revised medium for rapid growth and bio assays with tobacco tissue cultures. Physiologia Plantarum, 15(3), 473-497.
3. Smith, H. (2000). Phytochromes and light signal perception by plants—an emerging synthesis. Nature, 407(6804), 585-591.
4. Folta, K.M., & Childers, K.S. (2008). Light as a growth regulator: controlling plant biology with narrow-bandwidth solid-state lighting systems. HortScience, 43(7), 1957-1964.
5. Zhu, J.Y., Park, T., Isola, P., & Efros, A.A. (2017). Unpaired Image-to-Image Translation using Cycle-Consistent Adversarial Networks. Proceedings of the IEEE International Conference on Computer Vision (ICCV).
6. Massa, G.D., Kim, H.H., Wheeler, R.M., & Mitchell, C.A. (2008). Plant productivity in response to LED lighting. HortScience, 43(7), 1951-1956.
