Relay-Aided Secure Broadcasting for Visible Light Communications: Analysis and Framework

1. Content Structure & Analysis

1.1. Table of Contents

• 2. Introduction & Overview
• 3. System Model & Problem Formulation
• 3.1. Channel Model & Assumptions
• 3.2. Amplitude Constraints & Signaling
• 4. Proposed Relaying Schemes
• 4.1. Cooperative Jamming (CJ)
• 4.2. Decode-and-Forward (DF)
• 4.3. Amplify-and-Forward (AF)
• 4.4. Secure Beamforming Design
• 5. Achievable Secrecy Rate Regions
• 6. Experimental Results & Performance Evaluation
• 7. Key Insights & Summary
• 8. Original Analysis: Core Insight & Critique
• 9. Technical Details & Mathematical Framework
• 10. Analysis Framework: Example Case Study
• 11. Future Applications & Research Directions
• 12. References

2. Introduction & Overview

This work addresses the critical challenge of securing broadcast communications in Visible Light Communication (VLC) systems. VLC, leveraging LED luminaires for data transmission, is a promising solution for indoor high-speed networks but inherently suffers from a broadcast nature, making it vulnerable to eavesdropping. The paper proposes a novel framework employing multiple trusted, cooperative half-duplex relay nodes to enhance physical layer security against an external eavesdropper in a single-input single-output (SISO) broadcast setting with two legitimate users.

The core innovation lies in integrating three classic relaying strategies—Cooperative Jamming (CJ), Decode-and-Forward (DF), and Amplify-and-Forward (AF)—with carefully designed secure beamforming at the relays. All transmissions are subject to amplitude constraints to respect the LED's dynamic range, using superposition coding with uniform signaling. The analysis derives achievable secrecy rate regions and demonstrates the superiority of relay-aided schemes over direct transmission, with performance heavily dependent on the eavesdropper's location, number of relays, and network geometry.

3. System Model & Problem Formulation

3.1. Channel Model & Assumptions

The system comprises a transmitter luminaire (Tx), two legitimate receivers (R₁, R₂), an external eavesdropper (Eve), and N trusted relay luminaires. All nodes are equipped with single light fixtures (multiple LEDs) or single photo-detectors, making it a SISO system per link. The VLC channel is modeled considering both line-of-sight (LoS) and diffuse components. The relays operate in half-duplex mode. A key assumption is the knowledge of channel state information (CSI) for all links involving legitimate nodes; the eavesdropper's channel may be partially known or unknown, affecting beamforming design.

3.2. Amplitude Constraints & Signaling

Transmitted signals are amplitude-constrained, i.e., $X \in [-A, A]$, to ensure LEDs operate within their linear dynamic range and to meet illumination requirements. The input distribution is uniform over this interval for superposition coding. The secrecy rate for user $k$ against the eavesdropper is defined as $R_{s,k} = [I(X; Y_k) - I(X; Z)]^+$, where $I(\cdot;\cdot)$ is mutual information, $Y_k$ is the signal at legitimate receiver $k$, and $Z$ is the signal at the eavesdropper. The goal is to characterize the region of simultaneously achievable $(R_{s,1}, R_{s,2})$.

4. Proposed Relaying Schemes

4.1. Cooperative Jamming (CJ)

Relays transmit artificial noise (jamming signals) that are designed to degrade the eavesdropper's channel while causing minimal interference to the legitimate receivers. This is achieved through null-steering beamforming where the jamming signal is projected onto the null space of the legitimate channels or by optimizing beamforming vectors to maximize the secrecy rate.

4.2. Decode-and-Forward (DF)

Relays decode the source message and re-encode it before forwarding. This scheme requires the relay-to-eavesdropper link to be weaker than the relay-to-legitimate-user links to prevent information leakage. Secrecy is achieved by leveraging the relay's ability to control the forwarded signal's structure.

4.3. Amplify-and-Forward (AF)

Relays simply amplify and forward the received signal without decoding. While simpler, it also amplifies noise. Secure beamforming is crucial here to weight the amplified signal in a way that benefits the legitimate receivers more than the eavesdropper.

4.4. Secure Beamforming Design

For all schemes, beamforming vectors $\mathbf{w}_i$ at relay $i$ are designed to solve optimization problems of the form: $\max_{\mathbf{w}} \min_{k} (\text{SNR}_{R_k}) - \text{SNR}_{Eve}$ subject to $||\mathbf{w}|| \leq P_{relay}$ and amplitude constraints. This max-min fair approach aims to boost the worst legitimate link while suppressing the eavesdropper's.

5. Achievable Secrecy Rate Regions

The paper derives inner bounds (achievable regions) for the secrecy capacity region under amplitude constraints for each scheme. For DF, the region is based on the broadcast channel with confidential messages and a cooperating relay. For CJ and AF, the regions involve complex expressions combining mutual information terms from the broadcast and multiple-access phases of relay operation. A key finding is that these regions are strictly larger than the region for direct transmission, confirming the value of relaying.

6. Experimental Results & Performance Evaluation

The performance is evaluated via numerical simulations of the derived secrecy rate regions. Key observations presented (inferred from the abstract and introduction):

• Superiority over Direct Transmission: All relay-aided schemes with secure beamforming outperform direct transmission, significantly expanding the achievable secrecy rate region.
• Scheme Dependency: No single scheme dominates universally. The best scheme depends on:
  • Eavesdropper Location: CJ is highly effective when Eve is near the relays but far from the legitimate users. DF/AF may be better when Eve is near the source.
  • Number of Relays (N): Performance improves with more relays due to increased degrees of freedom for beamforming.
  • Geometric Layout: The spatial distribution of relays relative to Tx, users, and Eve critically impacts the beamforming gain and interference management capability.
• Trade-offs: CJ may sacrifice some power for jamming, potentially reducing the rate for legitimate users. DF requires successful decoding at the relay, imposing a rate constraint on the first hop. AF is simple but suffers from noise amplification.

7. Key Insights & Summary

• Relays as Security Enhancers: Trusted cooperative relays are a powerful tool for VLC physical layer security, acting as controllable interferers or signal boosters.
• Beamforming is Essential: Simple relaying is insufficient; intelligent beamforming design is necessary to direct signals beneficially.
• Context-Aware Scheme Selection: The optimal relaying strategy is highly scenario-specific, requiring adaptive selection based on network geometry and threat model.
• Practical Constraints are Central: The amplitude constraint is not a minor detail but a fundamental driver of the signaling scheme and performance limits.

8. Original Analysis: Core Insight & Critique

Core Insight: This paper's most significant contribution is not merely applying RF-derived relaying to VLC, but rigorously reformulating the entire physical layer security problem under VLC's unique, non-negligible amplitude constraints. It moves beyond treating VLC as a "RF with lights" analogy. The work correctly identifies that the optimal security strategy is a geometrically determined hybrid of signal reinforcement and targeted interference, mediated by a swarm of simple relay nodes. This aligns with a broader trend in network security shifting from monolithic encryption to distributed, physical-layer trust architectures, as seen in research on cooperative jamming for RF by Bloch et al. [Foundations and Trends in Communications and Information Theory, 2008].

Logical Flow: The logic is sound: 1) Define the VLC-specific constrained channel model, 2) Adapt three canonical relay protocols (CJ, DF, AF), 3) Integrate beamforming to exploit spatial degrees of freedom, 4) Derive achievable rate regions as the performance metric, 5) Validate via simulation showing geometry-dependent superiority. The flow from problem definition to solution and validation is classic and effective.

Strengths & Flaws: A major strength is the holistic consideration of practical constraints (amplitude limits, half-duplex relays) alongside information-theoretic security. The comparison framework across multiple schemes is valuable. However, the analysis has notable flaws. First, it heavily relies on the assumption of trusted relays—a significant deployment hurdle. Second, the CSI assumption for the eavesdropper's channel is often unrealistic; a more robust design should consider worst-case or statistical CSI, as explored in robust beamforming literature (e.g., work by Lorenz et al. in IEEE TSP). Third, the evaluation seems largely numerical; real-world VLC channel impairments like multi-path dispersion, mobility, and ambient light noise are not deeply integrated into the secrecy rate derivations, potentially overstating gains.

Actionable Insights: For practitioners, this paper offers a clear blueprint: Deploying a dense network of low-cost, trusted relay luminaries is a viable path to VLC security. The key is intelligent, adaptive control software that can: 1) Estimate node locations (via techniques like visible light positioning), 2) Select the optimal relaying scheme (CJ/DF/AF) in real-time based on the estimated threat location, and 3) Compute the corresponding secure beamforming vectors. This points towards a future of "cognitive secure VLC networks." Researchers should focus on relaxing the trusted relay and perfect CSI assumptions, perhaps using blockchain-based trust mechanisms for relays or developing artificial noise techniques that are effective under channel uncertainty, inspired by work in RF such as the use of artificial fast fading.

9. Technical Details & Mathematical Framework

The core mathematical problem involves maximizing the secrecy rate region under an amplitude constraint $X \in [-A, A]$. For a point-to-point link with eavesdropper, the secrecy capacity $C_s$ under such a constraint is not known in closed form but can be lower-bounded. With uniform input distribution, the mutual information is $I_{unif}(A; h, \sigma^2)$ where $h$ is channel gain and $\sigma^2$ is noise variance.

For the CJ scheme with a single relay, the transmitted signal at the relay is a jamming signal $J$. The received signals are: $Y_k = h_{t,k}X + h_{r,k}J + n_k$, $Z = h_{t,e}X + h_{r,e}J + n_e$. The beamforming design for $J$ aims to make $|h_{r,e}|$ large while keeping $|h_{r,k}|$ small, formalized as: $\max_{J} \ \min_{k} I(X; Y_k|J) - I(X; Z|J)$ subject to $E[J^2] \leq P_J$ and $J \in [-A_J, A_J]$.

The achievable region for the DF broadcast relay channel builds on the work of Liang et al. on broadcast channels with confidential messages, incorporating the relay's decoded message and the amplitude constraints.

10. Analysis Framework: Example Case Study

Scenario: A 10m x 10m office room. Tx is centrally located on the ceiling. Two legitimate users (U1, U2) are at desks (coordinates (2,2) and (8,8)). One eavesdropper is suspected near a window at (10,5). Four relay luminaries are installed at ceiling corners.

Analysis Steps: 1. Channel Estimation: Use a VLC channel model (e.g., Lambertian model) to estimate DC gains $h$ for all Tx/Relay-to-User/Eve links. 2. Threat Assessment: Calculate the potential eavesdropping rate for direct transmission: $R_{eve,dir} = I(X; Z_{dir})$. 3. Scheme Simulation: - CJ: Design beamforming vectors for the four relays to create a jamming pattern that is strong at Eve's location ((10,5)) but has nulls/minima at U1 and U2 locations. Solve the corresponding optimization for $\mathbf{w}$. - DF/AF: Evaluate if the relay-Eve links are weaker than relay-user links. If yes, DF/AF may be viable. 4. Performance Comparison: Compute the achievable secrecy rate pairs $(R_{s,1}, R_{s,2})$ for direct transmission, CJ, DF, and AF under a total power budget. 5. Selection: Plot the secrecy rate regions. In this geometry, Eve is near the room edge, likely far from the central Tx but potentially within range of a corner relay. CJ is likely the winner as relays can effectively jam Eve without severely harming centrally located legitimate users. The optimal beamforming solution would likely direct jamming energy towards the window area.

11. Future Applications & Research Directions

• Hybrid VLC/RF Secure Networks: Using RF links (e.g., Wi-Fi) as a secure control plane to manage trust and coordination among VLC relays, or using VLC for high-speed data and RF for jamming.
• Machine Learning for Adaptive Security: Using reinforcement learning to allow the network to learn the optimal relaying scheme and beamforming patterns in dynamic environments where user and eavesdropper locations change.
• Integration with Li-Fi and 6G: As Li-Fi aims for standardization and 6G explores optical wireless communications, these secure relaying protocols could become part of the link-layer security stack for ultra-dense indoor networks.
• Physical-Layer Security for IoT: Securing massive numbers of low-power IoT devices in smart buildings using VLC, where traditional cryptography may be too heavy. Relays could provide group-level security.
• Visible Light Positioning (VLP) Assisted Security: Using the same infrastructure for high-accuracy location services to precisely identify potential eavesdropper zones and apply targeted jamming.

12. References

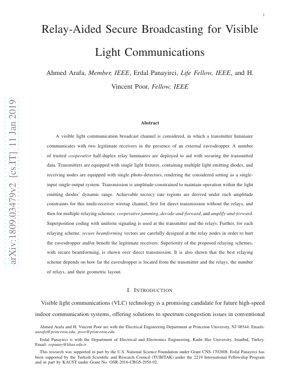

1. A. Arafa, E. Panayirci, and H. V. Poor, "Relay-Aided Secure Broadcasting for Visible Light Communications," arXiv:1809.03479v2 [cs.IT], Jan. 2019.
2. M. Bloch, J. Barros, M. R. D. Rodrigues, and S. W. McLaughlin, "Wireless Information-Theoretic Security," Foundations and Trends® in Communications and Information Theory, vol. 4, no. 4–5, pp. 265–515, 2008.
3. L. Yin and W. O. Popoola, "Optical Wireless Communications: System and Channel Modelling with MATLAB®," CRC Press, 2019. (For VLC channel models)
4. Z. Ding, M. Peng, and H. V. Poor, "Cooperative Non-Orthogonal Multiple Access in 5G Systems," IEEE Communications Letters, vol. 19, no. 8, pp. 1462–1465, Aug. 2015. (For modern relaying concepts)
5. Y. S. Shiu, S. Y. Chang, H. C. Wu, S. C. Huang, and H. H. Chen, "Physical layer security in wireless networks: a tutorial," IEEE Wireless Communications, vol. 18, no. 2, pp. 66-74, April 2011.
6. PureLiFi. "What is LiFi?" [Online]. Available: https://purelifi.com/what-is-lifi/
7. IEEE Standard for Local and Metropolitan Area Networks–Part 15.7: Short-Range Wireless Optical Communication Using Visible Light, IEEE Std 802.15.7-2018, 2018.
