1.1 Introduction & Overview

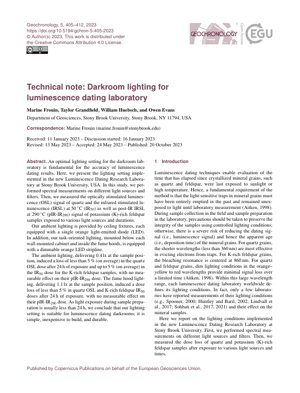

This technical note details the implementation and validation of a darkroom lighting system for the Luminescence Dating Research Laboratory at Stony Brook University. Luminescence dating relies on measuring trapped electrons in mineral grains (quartz, feldspar) since their last exposure to sunlight. Any unintended laboratory light exposure can reset this signal, leading to significant age underestimation. The study establishes a simple, cost-effective lighting solution using orange LEDs and evaluates its safety for sample preparation.
1.2 Samples and Instrumentation
The study utilized two quartz samples (a calibration quartz and a natural sample SB27) and two potassium-rich feldspar samples. Spectral measurements were performed using a Qmini Wide VIS spectrometer (212–1035 nm range). Light intensity at the sample position was measured with a Dr.meter LX1330B digital light meter. Luminescence measurements were conducted using standard OSL and IRSL protocols.
1.3 Lighting Setup and Spectral Analysis
The laboratory employs a two-tier lighting system:
1. Ambient Lighting: Ceiling fixtures with single orange LEDs.
2. Task Lighting: Dimmable orange LED striplines under wall cabinets and inside fume hoods.
Spectral analysis confirmed the emission was primarily within the orange-red spectrum (>590 nm), minimizing overlap with the sensitive bleaching wavelengths of quartz (<360 nm) and feldspar (~860 nm).
1.4 Experimental Results: Dose Loss Measurements
Samples were exposed to the lighting for up to 24 hours, and the subsequent dose loss was measured.
Quartz OSL: Exposure to ambient light (0.4 lx) and fume hood light (1.1 lx) resulted in an average dose loss of <5%.
Feldspar IRSL: The IR50 signal showed up to ~5% dose loss under ambient light. Crucially, the more thermally stable pIR-IR290 signal showed no measurable dose loss under any tested condition.
1.5 Key Insights and Conclusions
The implemented orange LED lighting system is effective for luminescence dating darkrooms. It induces negligible signal loss (<5%) in quartz and the most stable feldspar signals over practical preparation times. The system is praised for its simplicity, low cost, and durability, providing a practical benchmark for other laboratories.
2. Original Analysis & Expert Commentary
Core Insight: Frouin et al. deliver a masterclass in practical, problem-driven geoscience. This isn't about novel physics; it's about engineering a robust, reproducible lab environment—the unsexy but critical infrastructure that underpins reliable data. Their work highlights that in fields like luminescence dating, methodological rigor at the sample preparation stage is as important as analytical precision during measurement. As emphasized in foundational texts like Aitken's (1998) and reinforced by inter-laboratory comparison studies (e.g., Duller, 2008), consistency in pre-measurement protocols is paramount for comparability across studies.
Logical Flow: The paper's logic is impeccably clear: Define the problem (light-induced signal loss) → Propose a solution (orange LED system) → Characterize the solution (spectral analysis) → Stress-test the solution (empirical dose loss experiments) → Conclude on its efficacy. This follows the classic hypothesis-testing framework, making the argument bulletproof.
Strengths & Flaws: The major strength is its immediate utility and replicability. The specs are clear enough for any lab to copy. The use of both quartz and feldspar, and multiple signals within feldspar (IR50 and pIR-IR290), provides comprehensive coverage. However, a flaw is the limited stress-testing. A 24-hour exposure is a good benchmark, but what about cumulative, low-level exposure over weeks of complex preparation? Studies like Sohbati et al. (2021) have shown signal loss can be non-linear with time. Furthermore, the study assumes a single "orange" LED spectrum. Variability in LED manufacturing could lead to different spectral outputs, a point underscored by the National Institute of Standards and Technology (NIST) guidelines on LED characterization. The paper would be stronger with a sensitivity analysis on spectral peak wavelength and bandwidth.
Actionable Insights: For lab managers: Adopt this lighting scheme as a baseline. For researchers: Document your lab's lighting conditions with the same rigor as your measurement parameters—it should be in the methods section of every paper. For the community: This paper is a call to action. We need a standardized, open-access database of "lab environment" specs (lighting, RFI levels, vibration) akin to the metadata standards promoted by initiatives like FAIR (Findable, Accessible, Interoperable, Reusable) data principles. The next step is to move from validating one lab's setup to defining universal, quantifiable safety thresholds for darkroom illumination.
3. Technical Details & Mathematical Framework
The core principle is the avoidance of photo-eviction of electrons from metastable traps in the crystal lattice. The probability of eviction is related to the overlap between the light source's emission spectrum $S(\lambda)$ and the mineral's photoionization cross-section $\sigma(\lambda)$. The induced signal loss $\Delta L$ can be conceptually modeled as an integral over exposure time $t$ and spectrum:
$\Delta L \propto \int_{0}^{t} \int_{\lambda_{min}}^{\lambda_{max}} I_0 \cdot S(\lambda) \cdot \sigma(\lambda) \, d\lambda \, dt$
where $I_0$ is the intensity. The goal is to minimize $\Delta L$ by ensuring $S(\lambda)$ and $\sigma(\lambda)$ have minimal overlap in the sensitive regions: $\lambda < 360$ nm for quartz and around $\lambda \approx 860$ nm for feldspar.
4. Experimental Results & Chart Description
Figure (Conceptual): A dual-panel chart would effectively summarize the results.
Panel A (Spectral Data): Shows three overlaid plots: 1) The emission spectrum of the orange LED (a sharp peak centered at ~610 nm, tapering off by 700 nm). 2) A representative quartz photoionization cross-section (high from ~200-360 nm, near zero above 400 nm). 3) A representative feldspar IRSL excitation spectrum (a broad peak centered at ~860 nm). The visual shows clear separation between the LED output and the sensitive regions.
Panel B (Dose Loss Bar Chart): A grouped bar chart for Quartz OSL, Feldspar IR50, and Feldspar pIR-IR290. For each mineral/signal, two bars show percent dose loss after 24h: one for Ambient Light (0.4 lx) and one for Fume Hood Light (1.1 lx). The key result is visible: all bars for Quartz OSL and Feldspar IR50 are below 5%, and the bars for Feldspar pIR-IR290 are at 0%.
5. Analysis Framework: Case Example
Scenario: A new luminescence lab in a university geology department is being set up.
Framework Application:
1. Define Requirements: Must safely prepare quartz and feldspar samples. Budget is limited.
2. Benchmark: Use Frouin et al. (2023) as the baseline design. Source orange LEDs with a specified peak wavelength (~610 nm) and narrow bandwidth.
3. Characterize: Before sample preparation begins, use a borrowed spectrometer to measure the actual emission spectrum of the installed LEDs. Verify the absence of UV/blue "leakage" or IR peaks.
4. Validate: Perform a mini-validation study. Expose aliquots of a well-characterized calibration quartz and feldspar sample to the new lab lights for 1, 4, and 8 hours. Measure OSL/IRSL signals and confirm dose loss is <2% over 8 hours, aligning with or improving upon the benchmark.
5. Document & Standardize: Create a lab manual entry specifying the lighting: "Type: Orange LED. Model: [X]. Measured Intensity: [Y] lx at bench height. Validated for [Z] hours of exposure." This creates an auditable standard operating procedure (SOP).
6. Future Applications & Research Directions
1. Smart Lighting Systems: Integration of motion sensors and programmable dimmers that reduce intensity to ultra-safe levels when no direct manipulation is occurring, minimizing cumulative exposure.
2. Material-Specific Lighting: Development of LEDs with spectra tailored to specific minerals. For example, a deep red LED (>650 nm) might be even safer for feldspar work, while a specific orange wavelength might be optimized for quartz.
3. Real-Time Dosimetry: Using inexpensive, sensitive photodiodes coupled with a microcontroller to log cumulative light exposure (weighted by the mineral-specific sensitivity spectrum) for each sample batch, providing quantitative exposure metadata.
4. Broader Application: The principles are applicable to any light-sensitive material handling, such as in optical dating of sediments, forensic luminescence, or handling of photographic materials and semiconductors.
7. References
1. Aitken, M.J., 1998. An Introduction to Optical Dating. Oxford University Press.
2. Duller, G.A.T., 2008. Luminescence dating: guidelines on using luminescence dating in archaeology. English Heritage.
3. Sohbati, R., et al., 2021. Effect of light exposure on the luminescence signals from quartz and feldspar. Radiation Measurements, 144, 106567.
4. Spooner, N.A., 2000. On the optical dating signal from quartz. Radiation Measurements, 32(5-6), 733-758.
5. National Institute of Standards and Technology (NIST). (n.d.). LED Measurement Series. Retrieved from NIST website.
6. FAIR Data Principles. (n.d.). GO FAIR Initiative. https://www.go-fair.org/fair-principles/
