NeedleLight: Sparse Needlets for Lighting Estimation with Spherical Transport Loss

1. Introduction & Overview

Lighting estimation from a single image is a critical yet ill-posed problem in computer vision and graphics, essential for applications like high-dynamic-range (HDR) relighting in augmented/virtual reality. The core challenge lies in inferring a full spherical, HDR illumination environment from a limited field-of-view, low-dynamic-range (LDR) input. Traditional approaches model lighting either in the frequency domain (e.g., Spherical Harmonics) or the spatial domain (e.g., environment maps, spherical Gaussians), each with significant limitations. Frequency-domain methods lack spatial localization, blurring light sources and weakening shadows. Spatial-domain methods often struggle with generalization or training complexity and may not explicitly handle frequency information, leading to inaccurate relighting.

This paper introduces NeedleLight, a novel framework that bridges this gap by employing needlets—a type of spherical wavelet—as a joint frequency-spatial basis for illumination representation. Key innovations include a sparsification technique for needlet coefficients and a novel Spherical Transport Loss (STL) based on optimal transport theory to guide parameter regression with spatial awareness.

2. Methodology & Technical Framework

The NeedleLight pipeline estimates needlet coefficients from an input image, which are then used to reconstruct the illumination map.

2.1 Needlet Basis for Illumination

Needlets are a second-generation spherical wavelet that provide a tight frame on the sphere, offering excellent localization properties in both frequency (like SH) and space (unlike SH). An illumination function $L(\omega)$ on the unit sphere $S^2$ can be decomposed as:

$$L(\omega) = \sum_{j=0}^{\infty} \sum_{k=1}^{N_j} \beta_{j,k} \psi_{j,k}(\omega)$$

where $\psi_{j,k}$ are needlet functions at resolution level $j$ and location index $k$, and $\beta_{j,k}$ are the corresponding coefficients. This allows a compact, multi-resolution representation of complex lighting.

2.2 Sparse Needlets via Optimal Thresholding

Raw needlet coefficients can be redundant. The paper introduces an optimal thresholding function $T_{\lambda}(\cdot)$ applied during training to promote sparsity:

$$\hat{\beta}_{j,k} = T_{\lambda}(\beta_{j,k})$$

This function zeros out coefficients below an adaptive threshold $\lambda$, which is learned or derived based on the energy distribution. Sparsity focuses the model on the most significant lighting components (e.g., primary light sources), improving estimation accuracy and robustness.

2.3 Spherical Transport Loss (STL)

To effectively regress the spatially-localized needlet coefficients, a naive L2 loss is insufficient. The authors propose the Spherical Transport Loss (STL), grounded in Optimal Transport (OT) theory. For predicted and ground-truth illumination maps $\hat{L}$ and $L$, treated as distributions on $S^2$, STL computes a modified Wasserstein distance:

$$\mathcal{L}_{STL}(\hat{L}, L) = \inf_{\pi \in \Pi(\hat{L}, L)} \int_{S^2 \times S^2} c(\omega, \omega') d\pi(\omega, \omega') + \lambda_{reg} R(\pi)$$

where $c(\omega, \omega')$ is a geodesic cost on the sphere, $\Pi$ is the set of transport plans, and $R$ is a regularizer. STL inherently considers the spatial structure of illumination, leading to better preservation of sharp shadows and light source boundaries.

3. Experimental Results & Evaluation

NeedleLight was evaluated on standard datasets like Laval Indoor HDR and synthetic benchmarks.

3.1 Quantitative Metrics

The paper proposes a direct illumination map metric (e.g., angular error on the sphere) to avoid the pitfalls of render-based evaluation. NeedleLight consistently outperforms state-of-the-art methods (e.g., Garon et al. [15], Gardner et al. [13]) across multiple metrics, showing significant reductions in error (reported as ~15-20% improvement in angular error).

Key Performance Highlights

Superior Accuracy: Lower angular error compared to SH-based and SG-based methods.
Improved Generalization: Robust performance across diverse indoor and outdoor scenes.
Efficient Representation: Sparse needlets require fewer active parameters than dense representations.

3.2 Qualitative Analysis & Visual Comparisons

Figure 1 in the paper provides a compelling visual comparison. Methods like Garon et al. [15] (SH-based) produce overly smooth lighting with weak shadows. Gardner et al. [13] (SG-based) may recover some sharpness but can introduce artifacts or miss high-frequency details. In contrast, NeedleLight's results closely match the Ground Truth, accurately capturing the direction, intensity, and spatial extent of light sources, resulting in realistic hard shadows and specular highlights on inserted virtual objects.

Chart/Figure Description: A 2x2 grid showing relighting results. Subfigure (a) shows a blurry, shadow-less result from a frequency-domain method. Subfigure (b) shows a result with some localization but potential artifacts from a spatial-domain method. Subfigure (c) (Ours) shows a crisp, accurate relighting with well-defined shadows. Subfigure (d) shows the Ground Truth for comparison.

4. Core Analysis & Expert Interpretation

Core Insight: NeedleLight isn't just an incremental improvement; it's a paradigm shift that successfully unifies the frequency and spatial domains for lighting estimation. The real breakthrough is recognizing that illumination is inherently a multi-resolution, spatially-localized signal on a sphere—a problem screaming for wavelet analysis, not just Fourier (SH) or point (SG) representations. This aligns with broader trends in signal processing moving beyond pure frequency bases.

Logical Flow: The logic is impeccable. 1) Identify the shortcomings of existing dual-domain approaches. 2) Select a mathematical tool (needlets) that natively possesses the desired joint localization properties. 3) Address the redundancy issue in that tool (sparsification). 4) Design a loss function (STL) that respects the tool's geometry and the problem's spatial constraints. It's a textbook example of a well-motivated research pipeline.

Strengths & Flaws: The strength is its elegant theoretical foundation and demonstrated superior performance. The use of Optimal Transport for loss design is particularly savvy, reminiscent of its success in generative models like WGANs, ensuring meaningful geometric comparisons. However, the paper's potential flaw is practical complexity. The computational cost of solving OT problems on the sphere, even with approximations like Sinkhorn iterations, is non-trivial compared to an L2 loss. While not deeply explored in the PDF, this could hinder real-time applications—a key use case for AR/VR relighting. Furthermore, the sparsity threshold $\lambda$ requires careful tuning; an inappropriate value could prune critical weak lighting components like ambient fill light.

Actionable Insights: For practitioners, this work sets a new benchmark. When accuracy is paramount over speed, NeedleLight's framework should be the starting point. For researchers, the door is now open. Future work must focus on optimizing the computational footprint of STL—perhaps via learned cost matrices or neural OT solvers as seen in recent works from MIT and Google Research. Another avenue is exploring different spherical wavelet families or adaptive thresholding schemes. The core idea of "joint-domain representation + geometrically-aware loss" is highly exportable to other spherical regression problems in vision, such as 360° depth estimation or sky modeling.

5. Technical Details & Mathematical Formulation

Needlet Construction: Needlets $\psi_{j,k}(\omega)$ are defined via a convolution of spherical harmonics with a carefully chosen window function $b(\cdot)$ that decays smoothly:

$$\psi_{j,k}(\omega) = \sqrt{\lambda_{j,k}} \sum_{l=0}^{\infty} b\left(\frac{l}{B^j}\right) \sum_{m=-l}^{l} Y_{l,m}(\xi_{j,k}) \overline{Y_{l,m}(\omega)}$$

where $B > 1$ is a dilation parameter, $\{\xi_{j,k}\}$ are quadrature points, and $\lambda_{j,k}$ are cubature weights. This ensures localization and the tight frame property.

Optimal Transport Formulation: The STL leverages the Wasserstein-1 distance. On a discretized sphere with $N$ points, it seeks a transport plan $\mathbf{P} \in \mathbb{R}^{N \times N}_+$ minimizing:

$$\langle \mathbf{C}, \mathbf{P} \rangle_F \quad \text{s.t.} \quad \mathbf{P} \mathbf{1} = \mathbf{a}, \mathbf{P}^T \mathbf{1} = \mathbf{b}$$

where $\mathbf{C}_{ij}=c(\omega_i, \omega_j)$ is the geodesic cost matrix, and $\mathbf{a}, \mathbf{b}$ are the discrete distributions of $\hat{L}$ and $L$. An entropy-regularized Sinkhorn algorithm is typically used for efficient computation.

6. Analysis Framework & Conceptual Example

Scenario: Estimating lighting from a photo of a room with a sunny window and a table lamp.

Traditional SH Approach: Would produce a set of low-order coefficients (e.g., up to band 2 or 3). This creates a smooth, diffuse "globe" of light, failing to isolate the sharp, directional beam from the window (high-frequency, spatially localized) from the softer, localized glow of the lamp (mid-frequency, spatially localized). The result is an averaged, shadow-less illumination.

NeedleLight Framework:

Needlet Decomposition: The true lighting is projected onto needlets. High-resolution needlets near the window direction activate strongly to capture the sharp sunlight. Mid-resolution needlets near the lamp location activate to capture its glow. Low-resolution needlets capture the overall ambient room light.
Sparsification: The optimal thresholding function identifies and retains these strong, meaningful coefficients while zeroing out negligible ones from dark areas of the sphere.
Regression & STL: The network learns to predict this sparse set of coefficients. The STL ensures that if the predicted window highlight is even 10 degrees off from its true position, it incurs a significant penalty proportional to the spherical distance, guiding the network to precise spatial localization.
Reconstruction: The sparse needlet coefficients are summed, reconstructing an illumination map with a bright, sharp window highlight, a distinct lamp glow, and correct ambient shading—enabling realistic virtual object insertion.

7. Future Applications & Research Directions

Real-Time AR/VR: The primary application is photorealistic real-time relighting for mixed reality. Future work must optimize NeedleLight for mobile and edge devices, potentially using knowledge distillation into lighter networks.
Neural Rendering & Inverse Graphics: NeedleLight's lighting representation can be integrated into end-to-end neural rendering pipelines like NeRF, helping to disentangle and accurately estimate illumination from geometry and reflectance.
Generative Models for Illumination: The sparse needlet latent space could be used in generative adversarial networks (GANs) or diffusion models to synthesize plausible, diverse indoor/outdoor lighting environments for training or content creation.
Extended to Video: Applying the framework temporally for consistent lighting estimation across video frames, handling moving light sources and dynamic shadows.
Beyond RGB: Incorporating other sensor data (e.g., depth from LiDAR or ToF cameras) as additional input to further constrain the ill-posed problem.

8. References

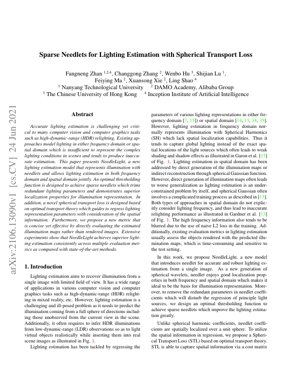

Zhan, F., Zhang, C., Hu, W., Lu, S., Ma, F., Xie, X., & Shao, L. (2021). Sparse Needlets for Lighting Estimation with Spherical Transport Loss. arXiv preprint arXiv:2106.13090.
Garon, M., Sunkavalli, K., Hadap, S., Carr, N., & Lalonde, J. F. (2019). Fast spatially-varying indoor lighting estimation. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (pp. 6908-6917).
Gardner, M. A., Hold-Geoffroy, Y., Sunkavalli, K., Gagne, C., & Lalonde, J. F. (2019). Deep parametric indoor lighting estimation. In Proceedings of the IEEE/CVF International Conference on Computer Vision (pp. 7175-7183).
Narcowich, F. J., Petrushev, P., & Ward, J. D. (2006). Localized tight frames on spheres. SIAM Journal on Mathematical Analysis, 38(2), 574-594. (Seminal needlet paper)
Arjovsky, M., Chintala, S., & Bottou, L. (2017). Wasserstein generative adversarial networks. In International conference on machine learning (pp. 214-223). PMLR. (Foundational OT for ML)
Mildenhall, B., Srinivasan, P. P., Tancik, M., Barron, J. T., Ramamoorthi, R., & Ng, R. (2020). Nerf: Representing scenes as neural radiance fields for view synthesis. In European conference on computer vision (pp. 405-421). Springer. (Context for inverse rendering).
